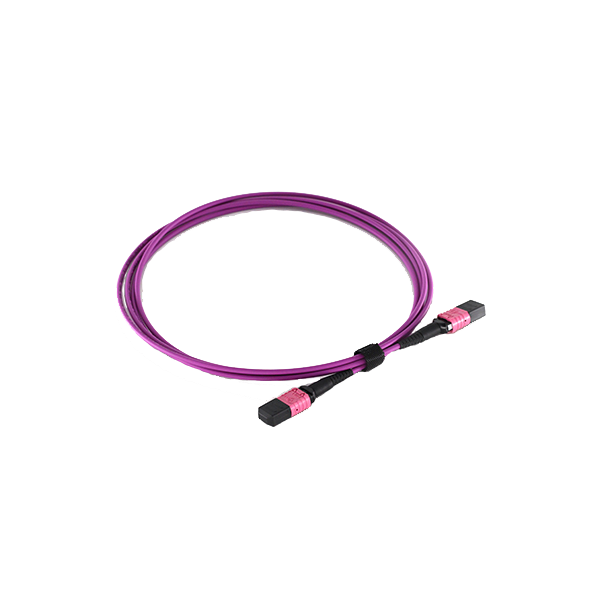

MPO Female to MPO Female 12 Fibers MM

特征
OS2,OM3,OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Allow easy migration from 10GbE to 40GbE or 100GbE
遵循标准
US Conec MTP? connector,Senko MPO Plus premium connector
即刻联系
  • 描述
  • 规格
  • 订购信息
  • 应用
  • MPO Female to MPO Female 12 Fibers MM

  • Specification parameter


    Parameters

    Unit

    Values

    Fiber Mode

    -

    OM4(OM3)50/125um

    Polish Type

    -

    UPC to UPC

    Insertion Loss

    dB

    0.35dB Max（0.15dB Typ. ）

    Attenuation at 850nm

    dB/km

    ≤2.3

    Jacket OD

    mm

    3

    Installation Tensile

    N

    100

    Operating Temperature

    ℃

    -10~+70

    Wavelength

    nm

    850/1310

    Minimum Bend Radius

    mm

    7.5

    Return Loss

    dB

    ≥20

    Attenuation at 1300nm

    dB/km

    ≤0.6

    Cable Jacket

    -

    LSZH

    Long-Term Temperature

    N

    50

    Storage Temperature

    ℃

    -40~+85


  • Other series MPO cable：


    MMF OM3/4/5 MPO/MTP-MPO/MTP Fiber Optic trunk Cable

    SMF OS2 MPO/MTP-MPO/MTP Fiber Optic trunk Cable

    OM3/4/5 8/16/12/24F MPO/MTP trunk Cable

    OS2 8/12F MPO/MTP trunk Cable ( Armored type option )

    OM3/4/5 2x8/16/12/24F MPO/MTP trunk Cable

    OS2 2x8/12F MPO/MTP trunk Cable ( Armored type option )

    OM3/4/5 4x8/16/12/24F MPO/MTP trunk Cable

    OS2 4x8/12F MPO/MTP trunk Cable

    OM3/4/5 8x8/16/12/24F MPO/MTP trunk Cable

    OS2 8x8/12F MPO/MTP trunk Cable

    MMF OM3/4/5 MPO/MTP-LC Fiber Optic Harness

    SMF OS2 MPO/MTP-LC Fiber Optic Harness

    OM3/4/5 8F MPO/MTP-LC trunk Cable Harness

    OS2 8F MPO/MTP-LC trunk Cable Harness

    OM3/4/5 16F MPO/MTP-LC trunk Cable Harness

    OS2 16F MPO/MTP-LC trunk Cable Harness

    OM3/4/5 12F MPO/MTP-LC trunk Cable Harnes

    OS2 12F MPO/MTP-LC trunk Cable Harness

    OM3/4/5 24F MPO/MTP-LC trunk Cable Harness

    OS2 24F MPO/MTP-LC trunk Cable Harness

    Options:

    (1) Gender. Male -Male,Female-Female,MTP" Pro

    (2) Flammability: LSZH,OFNR,OFNP,CPR

    (3) Length: Customized

    (4) Breakout length: 2ft,customized

    (5) Performance: Standard,Low,Ultra

    (6) Cable Diameter. 3.0 mm,3.6mm,4.5mm,9.0mm,12mm

    (7) Polarity: Type A,Type B,Type C,MTP Pro


  • High-density data center environment
    FTTH FTTB
    5G network
