首页 > PRODUCTS > Optical Switch > MEMS Optical Switch

MEMS 1×N (Component)

特征
Compact Size
Fast Switching Time
Low IL Good Repeatability
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
下载
即刻联系
  • 描述
  • 光路图

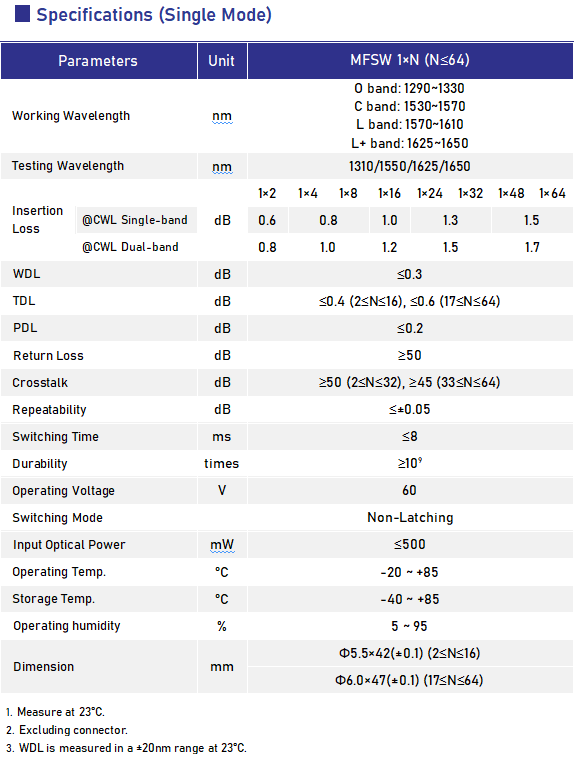

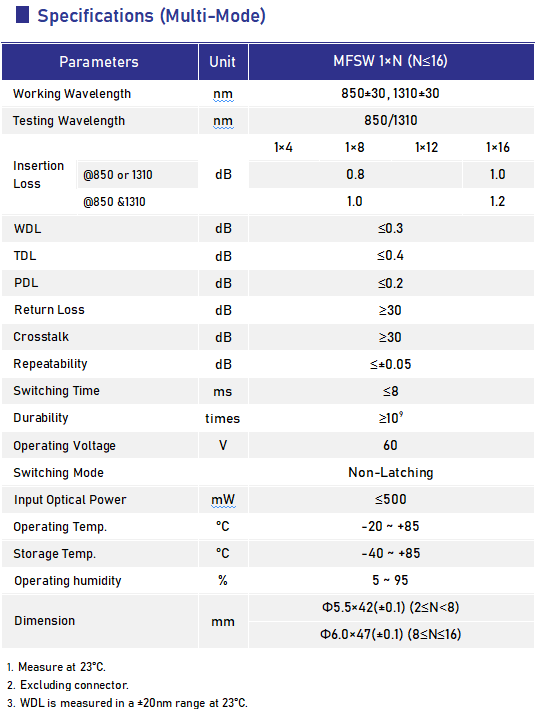

  • 规格

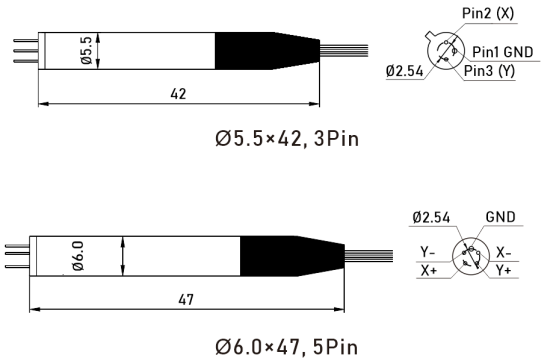

  • 尺寸
  • 订购信息
  • 应用

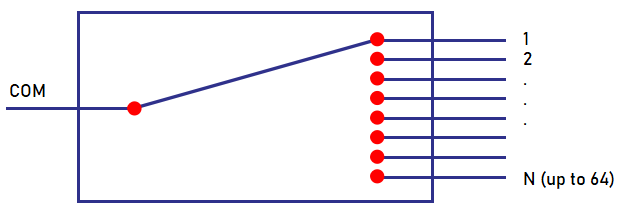

  • Optical Route  2

  •

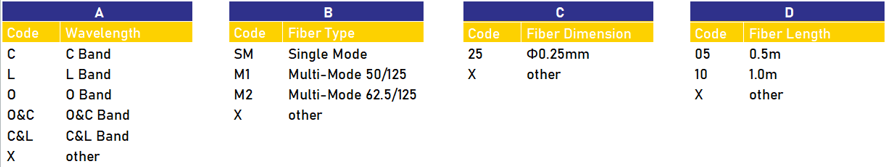

  • Ordering Information: MFSW 1×N-A-B-C-D


  • Optical Network
    Data Cente
    InstrumentationFiber
    Monitoring & Sensing
