QSFP28 100Gbps 850nm 100m Optical Transceiver

特征
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
4x25G electrical interface
MTP/MPO optical connector
Up to 100m OM4 MMF transmission
遵循标准
RoHS-6 compliant and lead-free
Compliant to IEEE 802.3bm
100GBASE-SR4
即刻联系
  • 描述
  • 尺寸
  • 订购信息
  • 应用
  • QSFP28 100Gbps 850nm 100m Optical Transceiver

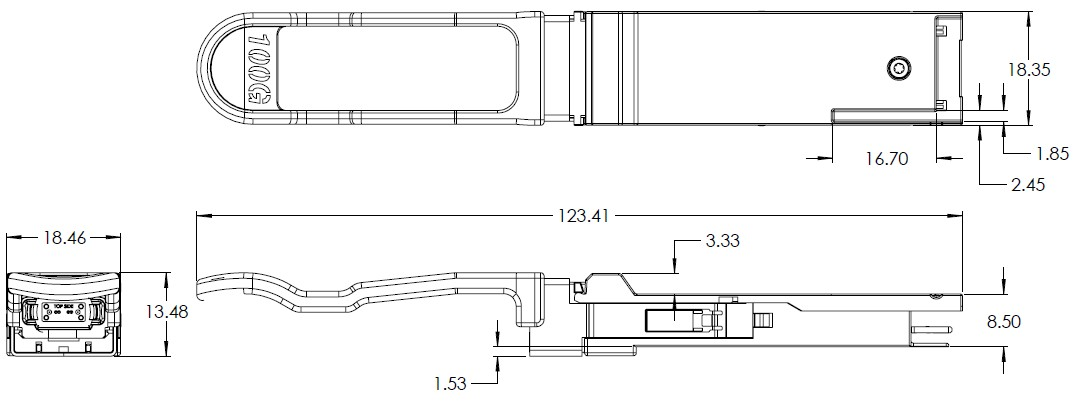

  • Figure3. Mechanical Outline


  • Ordering Information：

    Encapsulation

     mode

    Tempo

    Distence

    (km)

    Wave length

    (nm)

    Transmitting optical power(dBm)

    Receive sensitivity

    (dBm)

    Power dissipation

    (w)

    Port

    QSFP28

    100G

    0.1

    850

    -8.4~-2.4

    -10.3

    <2

    MTP/MPO

    QSFP28

    100G

    10

    LAN WDM

    -4.3~-4.5

    -10.6

    <3.5

    LC/UPC

    QSFP28

    100G

    40

    LAN WDM

    -2.9~-4.5

    -14.6

    <4.5

    LC/UPC

    QSFP28

    100G

    80

    LAN WDM

    2~-4.5

    -28

    <6.5

    LC/UPC

  • Data Center
    Fiber channel
    Ethernet switches and router applications
