首页 > PRODUCTS > Optical Switch > Mechanical Optical Switch (Relay)

Mini 1x3/1x4

特征
Mini Size
Fast Switching Time
Low Insertion Loss
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
即刻联系
  • 描述

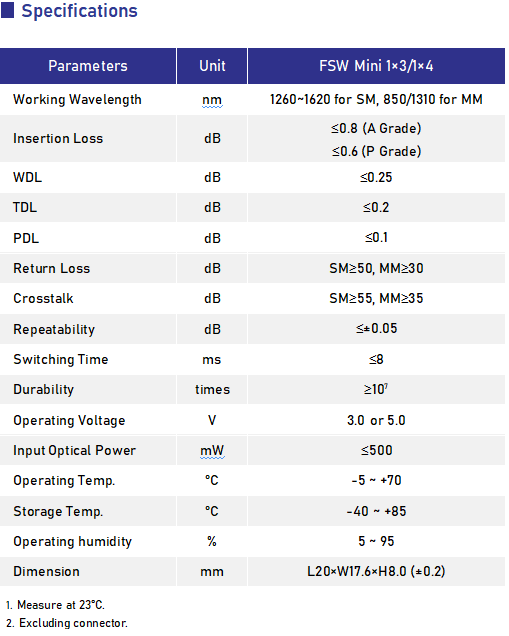

  • 规格
  • 尺寸
  • 订购信息
  • 应用

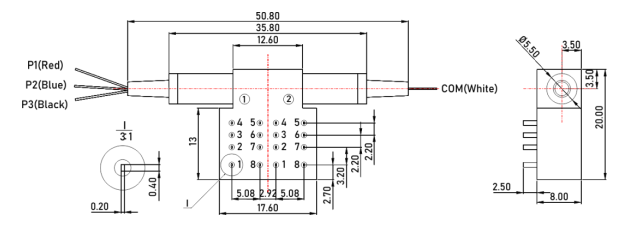

  • Mini 1×3 Mechanical Optical Switch (L20×W17.6×H8.0mm)

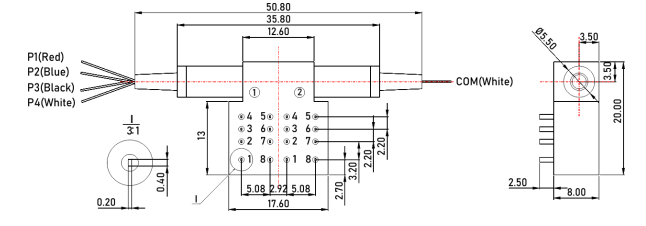

    Mini 1×4 Mechanical Optical Switch (L20×W17.6×H8.0mm)

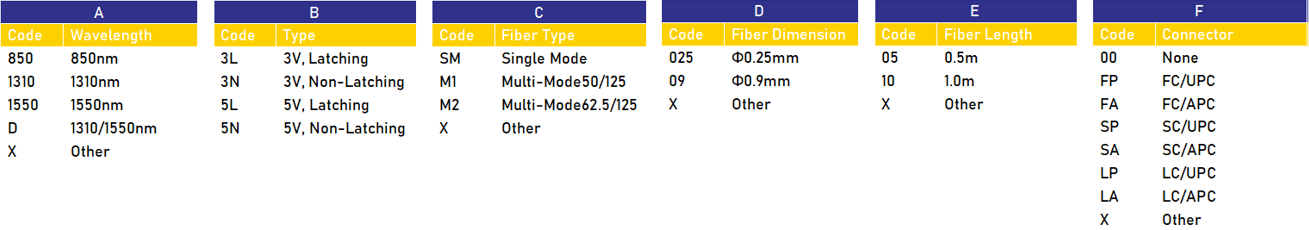

  • Ordering Information: FSW Mini 1×3-A-B-C-D-E-F / FSW Mini 1×4-A-B-C-D-E-F

  • Optical Network

    Monitoring & Sensing

    Instrumentation

    • 上一条: Mini 1x2 下一条: Mini 2x2B
