首页 > PRODUCTS > Optical Switch > Mechanical Optical Switch (Relay)

1x1

特征
Compact Size
Fast Switching Time
Low Insertion Loss
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
下载
即刻联系
  • 描述

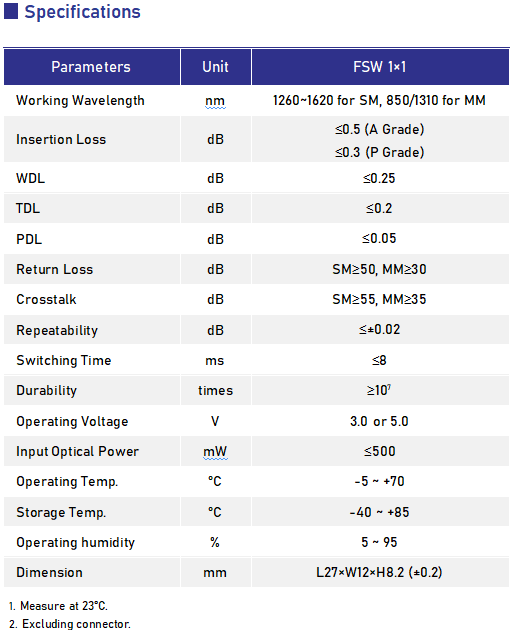

  • 规格
  • 尺寸
  • 订购信息
  • 应用
  •

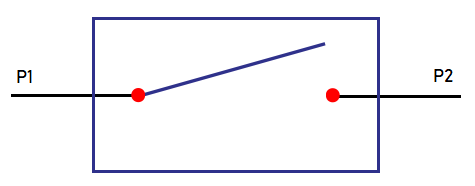

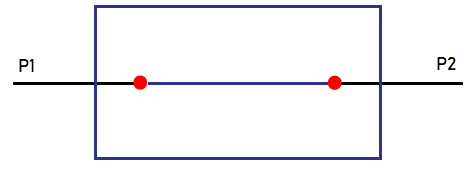

    State A                                                                                       State B

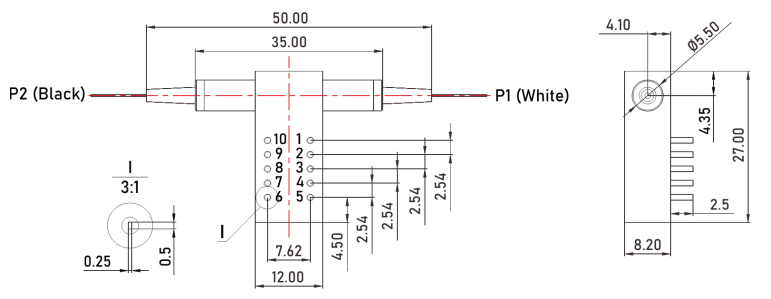

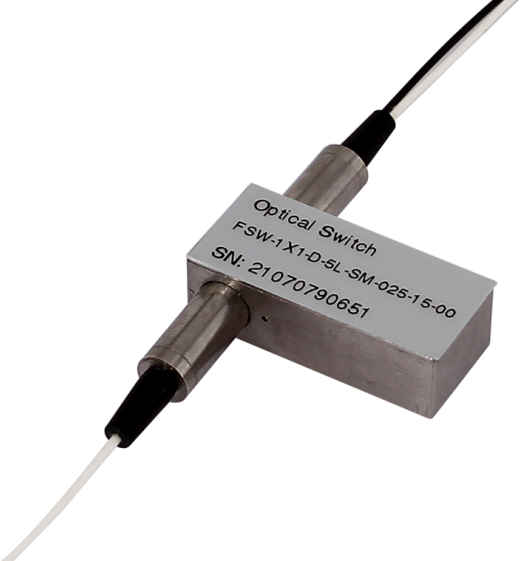

  • 1×1 Mechanical Optical Switch (L27×W12×H8.2mm)

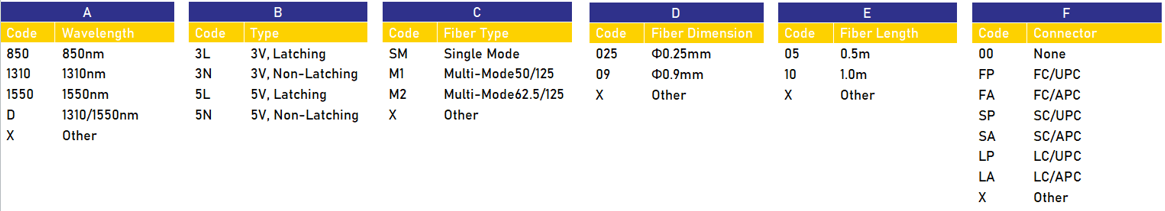

  • Ordering Information: FSW 1×1-A-B-C-D-E-F


  • Channel Blocking

    Reconfiguration

    Optical Systems
