首页 > PRODUCTS > Fiber Optic Cables > DAC Cables

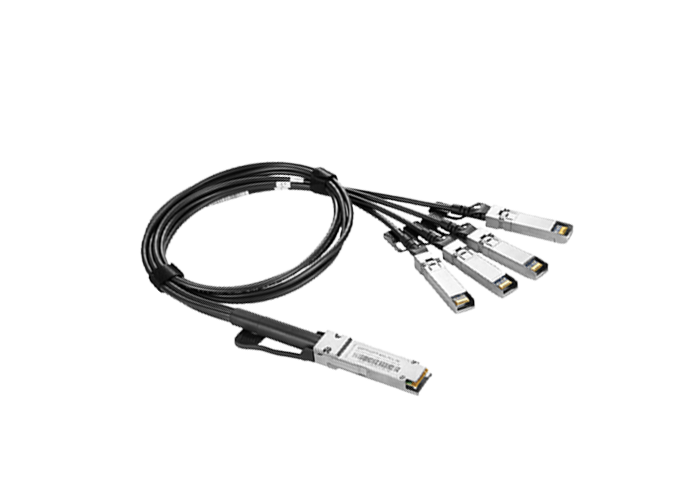

40G QSFP+ TO 4*10G SFP+ DAC

特征
Up to 7m transmission
Up to 10. 3125Gbps data rate per channel
Compliant with SFF- 8436,SFF-8431SFF-8432and SFF-8472
遵循标准
RoHS compliant
RF Immunity(RFI)
即刻联系
  • 描述
  • 规格
  • 尺寸
  • 订购信息
  • 应用

  • 40G QSFP+ TO 4*10G SFP+ DAC

  • General Product Characteristics

    Q/4SFP+DAC Specifications


    Number of Lanes

    Tx&Rx

    Channel Date Rate

    10.3125 Gbps

    Operating Temperature

    0 to +70℃

    Storage Temperature

    -40 to +85℃

    Supply Voltage

    3.3V nominal

    Electrical Interface

    38 pins edge connector(QSFP+)

         20 pins edge connector(SFP+)

    Management Interface

    Serial，I2C

  •

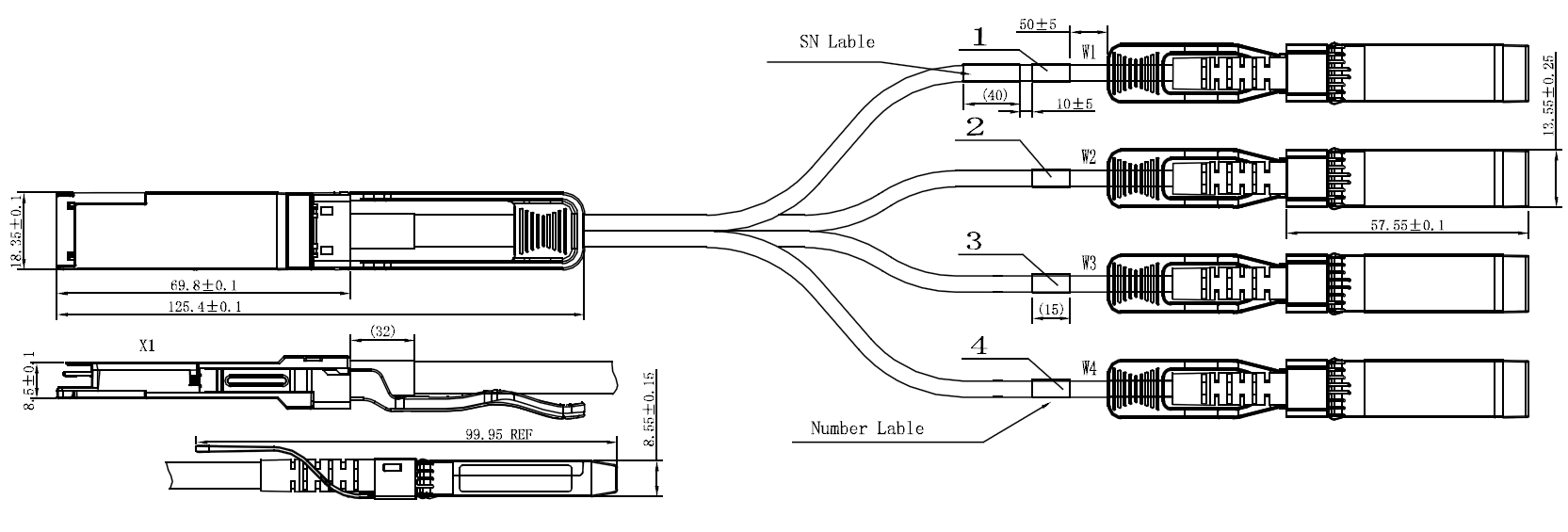

    Mechanical Diagram
