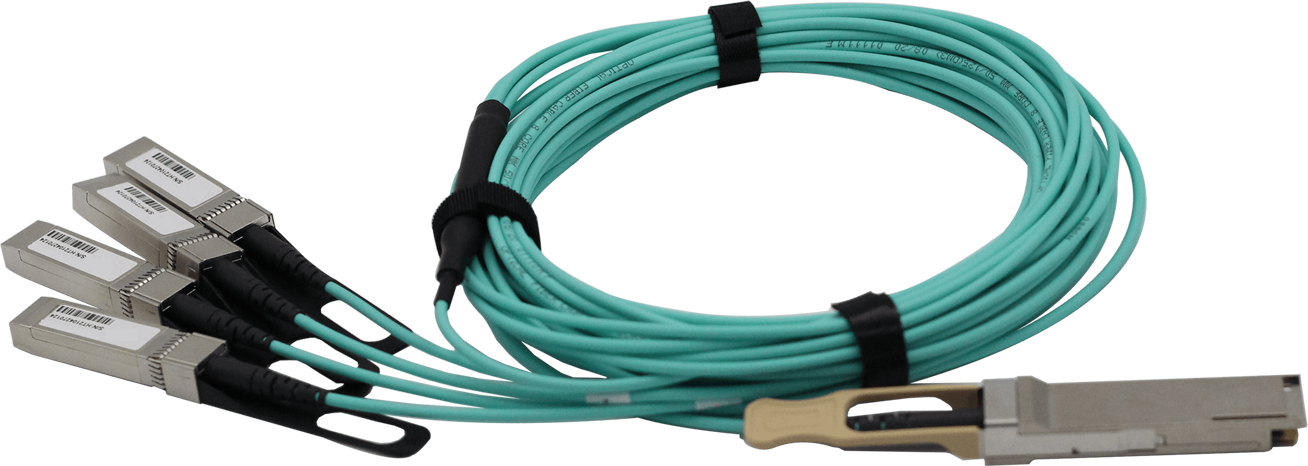

100G QSFP28 TO 4*25G SFP28 AOC

特征
Support 4x25GBASE-SR applicationCompliant to QSFP28 MSA SFF-8636 and SFP28 MSA SFF-8431 and SFF- 8472Transmission distance up to 50mMulti rate of up to 25.78125Gbpsper lane
遵循标准
RoHS compliant
UL certification cables (optional)
即刻联系
  • 描述
  • 规格
  • 尺寸
  • 订购信息
  • 应用
  • 100G QSFP28 TO 4*25G SFP28 AOC
  • Specification parameter

    Parameter

    Symbol

    Min.

    Typ.

    Max

    Unit

    Notes

    ModSell

    Module Select

    VOL

    0

    -

    0.8

    V


    Module Unselect

    VOH

    2.5

    -

    VCC

    V


    LPMode

    Low Power Mode

    VIL

    0

    -

    0.8

    V


    Normal Operation

    VIH

    2.5

    -

    VCC+0.3

    V


    ResetL

    Reset

    VIL

    0

    -

    0.8

    V


    Normal Operation

    VIH

    2.5

    -

    VCC+0.3

    V


    ModPreL

    Normal Operation

    VOL

    0

    -

    0.4

    V


    IntL

    Interrupt

    VOL

    0

    -

    0.4

    V


    Normal Operation

    VOH

    2.4

    -

    VCC

    V


    Electeical transmitter Characteristice

    Differential Date Input Swing

    Vin，p-p

    200

    -

    1600

    mV


    Output Differential Impedance

    Zin

    90

    100

    110

    Ω


    Electeical Receiver Characteristice

    Differential Date Input Swing

    Vout

    200

    -

    800

    mVpp


    Bit Error Rate

    BER



    E-12


    1

    Input Differential Impedance

    ZD

    90

    100

    110

    Ω

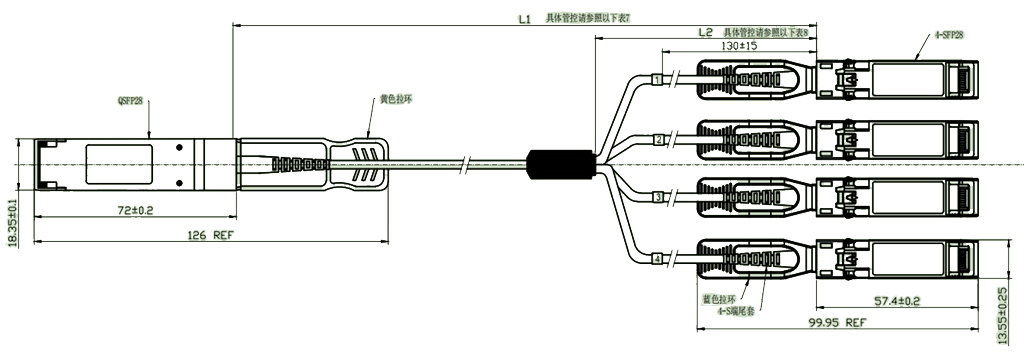

  •                                                                 Mechanical Diagram
  • Other series AOC active cable:

    40G Active optical cable

    100G Active optical cable

    40G QSFP+ AOC

    100G QSFP28 AOC

    40G QSFP+ TO 4*10G SFP+ AOC

    100G QSFP28 TO 4*25G SFP28 AOC

  • 4x25Gbe-SR
