100G QSFP28 TO 4*25G SFP28 DAC

特征
30AWG to 26AWG cable available
Enhanced EMI / EMC performance
Support serial ID function through EEPROM
Compliant with the IEEE 802.3bj Infiniband EDR specifications
遵循标准
RoHS compliant
RF Immunity(RFI)
Meets SFF-8636、SFF-8402
即刻联系
  • 描述
  • 规格
  • 尺寸
  • 订购信息
  • 应用
  • 100G QSFP28 TO 4*25G SFP28 DAC

  • Electrical Characteristics


    ITEM

    REQUIREMENT

    TEST

    CONDITION





    Differential lmpedance

    Cable

    lmpedance

    105+5/-100





    Rise time of 25ps (20%-80%).

    Paddle Card

    lmpedance

    100±10Q

    Cable

    Termination

    lmpedance

    100±150

    Differential

    (Input/Output)Return loss SDD11/SDD22



    Where

    f is thefrequency in GHz   Return loss(f)isthe return





    10MHz≤f≤19GHz

    Differential to common-mode (Input/Output)Retun loss

    SCD11/SCD22



    Where

    f is the frequency in GHz Return_loss(f)is the Differential to common- mode return loss at frequency f





    10MHz≤f≤19GHz

    Common-mode to Common-  mode(Input/Output)Retum loss SCC11/SCC22

    Returm_loss(f)≥2dB Where

    f is the frequency in GHz Return_loss(f)is the common-mode tocommon- mode retum loss at frequency f



    10MHz≤f≤19GHz



    Differential Insertion LosS (SDo21 Max.)

    (Differential Insertion Loss Max.For TPa to TPb Excluding Test fixture)

    10MHz≤f≤19GHz

              F AWG

    1.25GHz

    2.5GHz

    5.0GHz

    7.0GHz

    10Ghz

    12.89Ghz


    30(1m)Max.

    4.5dB

    5.4dB

    6.3dB

    7.5dB

    8.5dB

    10.5dB


  •

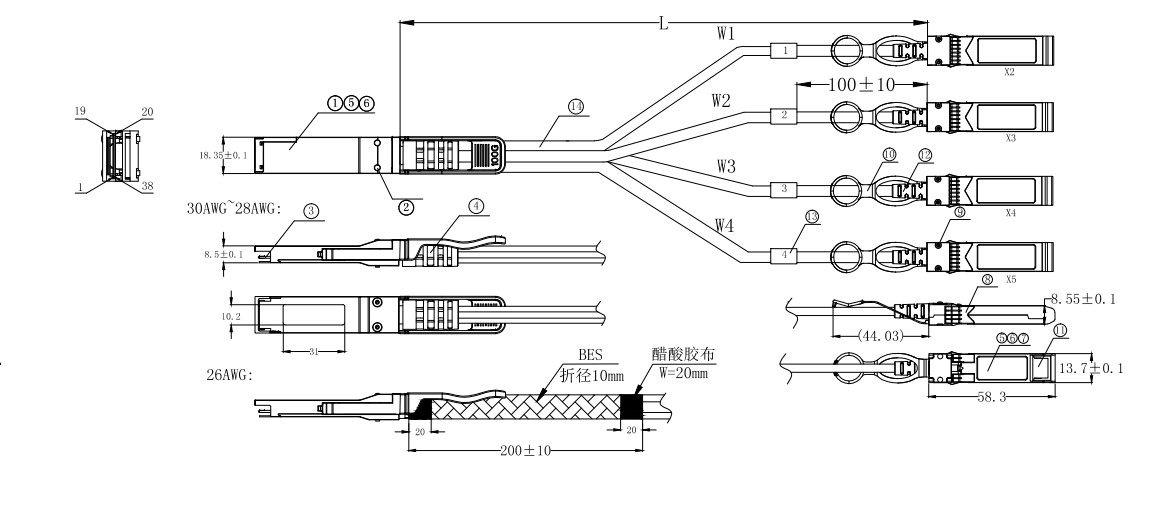

     Mechanical Diagram
  • Other series DAC high-speed cables：

    40G Direct Attach Cable

    100G Direct Attach Cable

    40G QSFP+ DAC

    100G QSFP28 AOC

    40G QSFP+ TO 4*10G SFP+ DAC

    100G QSFP28 TO 4*25G SFP28 DAC

  • 10G/25G/40G /100g Ethernet
    Infiniband SDR,DDR,QDR,FDR,EDR
    Switches,routers,data centers,cloud servers
