首页 > PRODUCTS > Optical Switch > Mechanical Optical Switch (Relay)

D2x2

特征
Compact Size
Fast Switching Time
Low Insertion Loss
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
下载
即刻联系
  • 描述

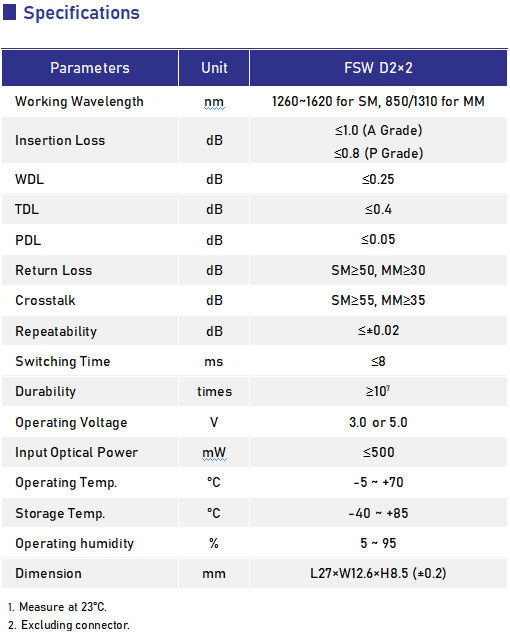

  • 规格
  • 尺寸
  • 订购信息
  • 应用
  •

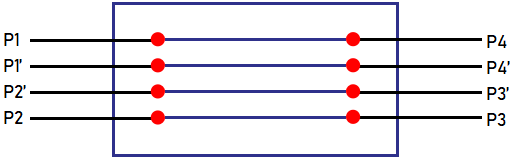

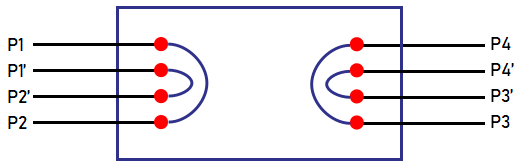

    State A                                                                                                State B

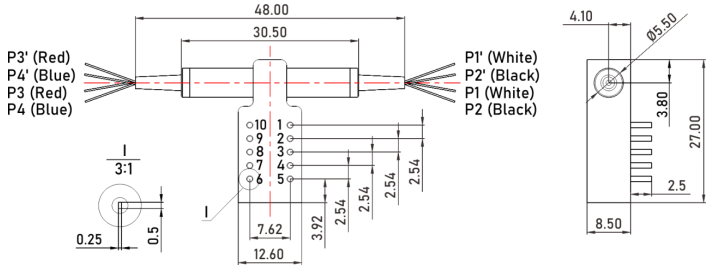

  • D2×2 Mechanical Optical Switch (L27×W12.6×H8.5mm)

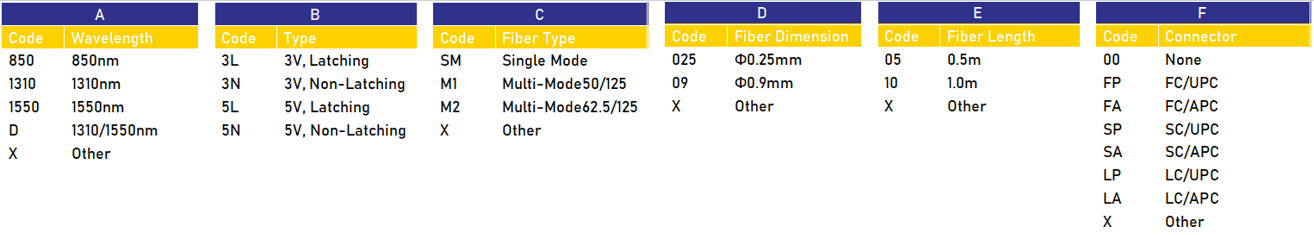

  • Ordering Information: FSW D2×2-A-B-C-D-E-F


  • Optical Network

    Protection Switching

    Reconfiguration

    Optical Systems

    • 上一条: D1x2 下一条: D2x2B
