40G QSFP+ DAC

特征
Compliant with SFF- 8436
Up to 10.3125Gbps data rate per channelUp to 7m transmission
遵循标准
RoHS compliant
RF Immunity(RFI)
即刻联系
  • 描述
  • 规格
  • 尺寸
  • 订购信息
  • 应用
  • 40G QSFP+ DAC
  • General Product Characteristics

    QSFP+DAC Specification


    Number of Lanes

    Tx&Rx

    Channel Date Rate

    10.3125 Gbps

    Operating Temperature

    0 to +70℃

    Storage Temperature

    -40 to +85℃

    Supply Voltage

    3.3V nominal

    Electrical Interface

    38 pins edge connector

    Management Interface

    Serial，I2C

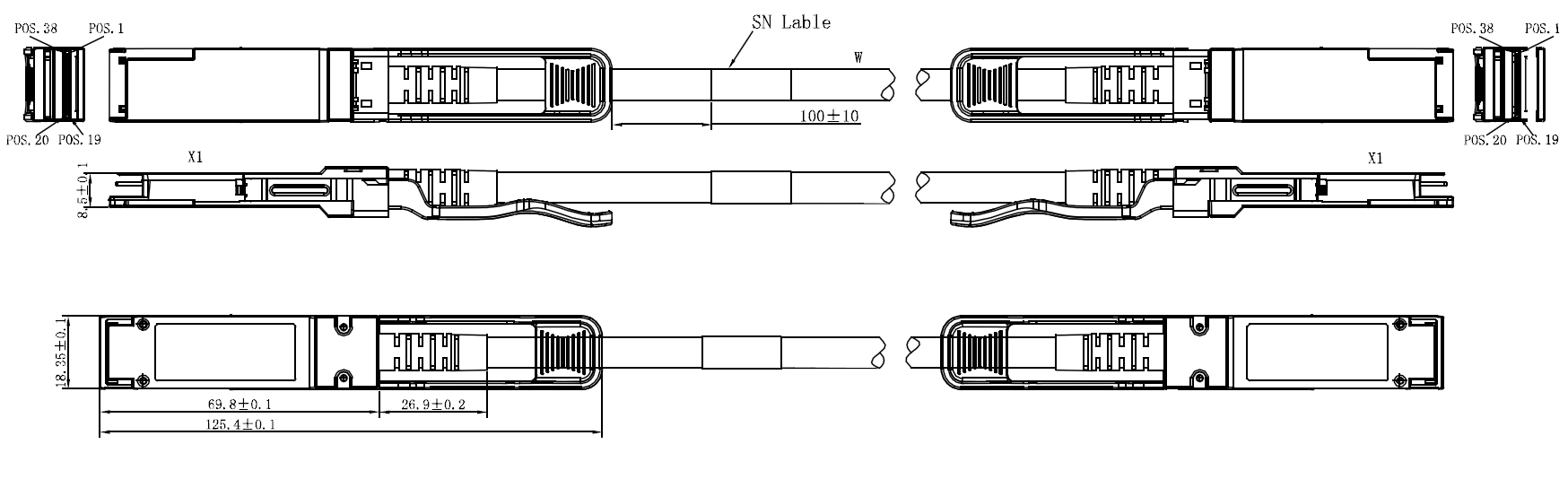

  •  Mechanical Diagram

  • Other series DAC high-speed cables：

    40G Direct Attach Cable

    100G Direct Attach Cable

    40G QSFP+ DAC

    100G QSFP28 AOC

    40G QSFP+ TO 4*10G SFP+ DAC

    100G QSFP28 TO 4*25G SFP28 DAC

  • 40G Ethernet
