首页 > PRODUCTS > Optical Switch > Magneto Optical Switch

1x4

特征
Solid-State High Speed
Compact Size
Low IL,High Isolation
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
即刻联系
  • 描述

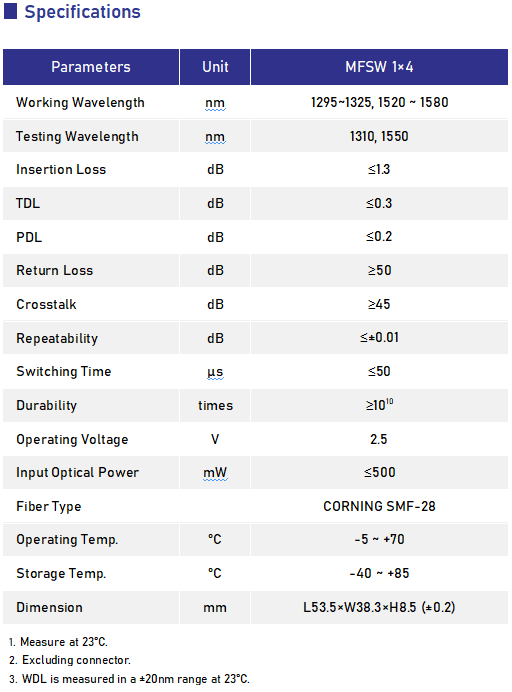

  • 规格
  • 尺寸
  • 订购信息
  • 应用

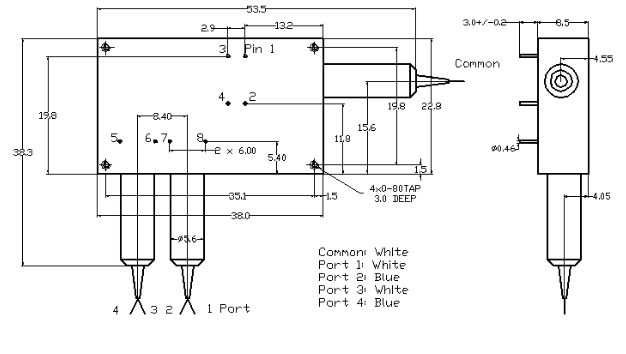

  • 1×4 Magneto Optical Switch (L53.5×W38.3×H8.5mm)

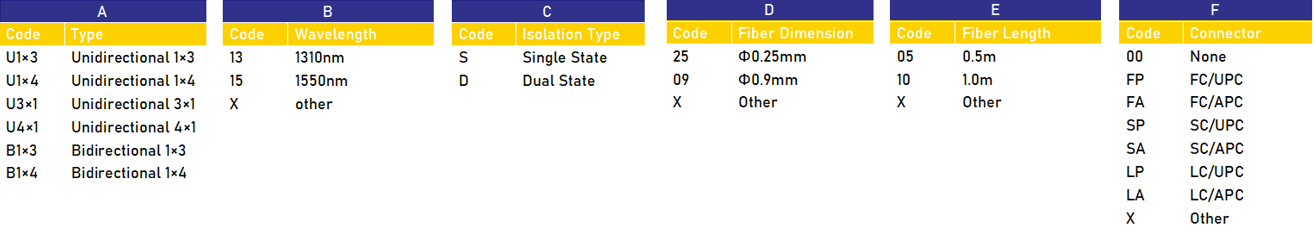

  • Ordering Information: MFSW 1×4-A-B-C-D-E-F

  • Optical Systems

    Instrumentation

    Fiber Monitoring & Sensing

    Aerospace Radar
