首页 > PRODUCTS > Optical Switch > MEMS Optical Switch

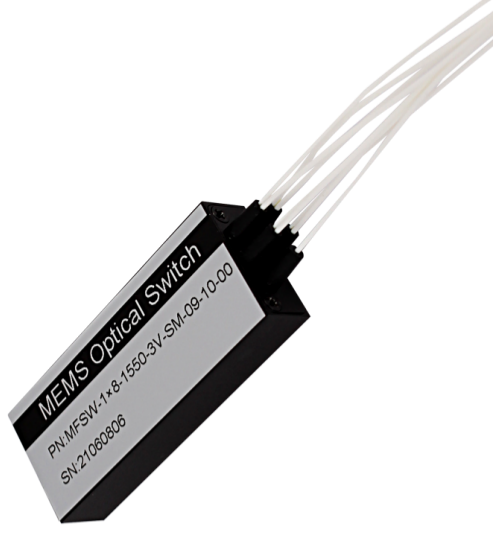

MEMS 1xN (Module)

特征
Modular Design
Fast Switching Time
Low IL,Good Repeatability
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
下载
即刻联系
  • 描述

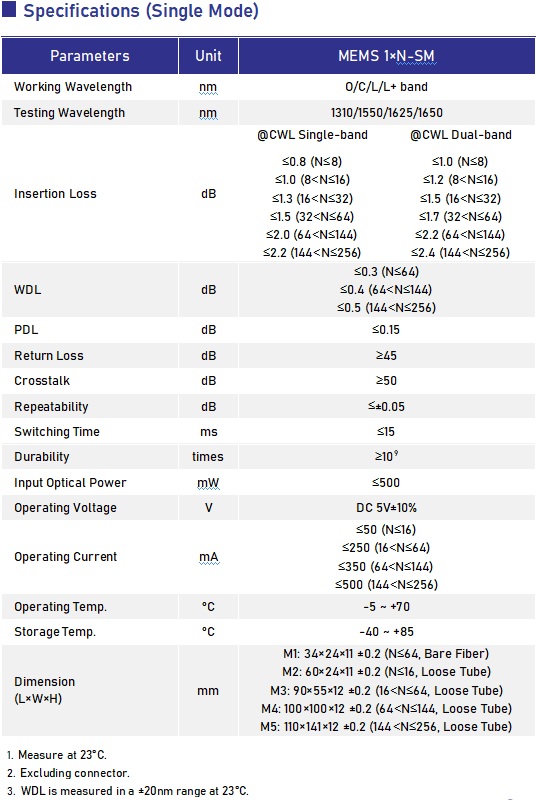

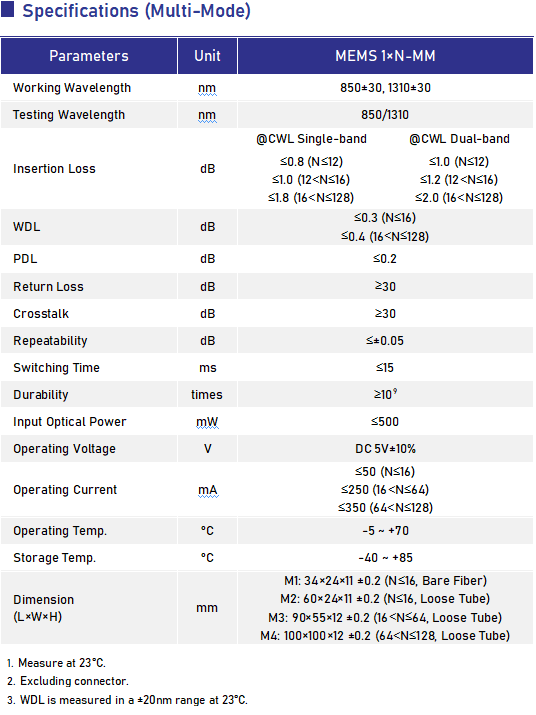

  • 规格
  • 尺寸
  • 订购信息
  • 应用
  •
  •

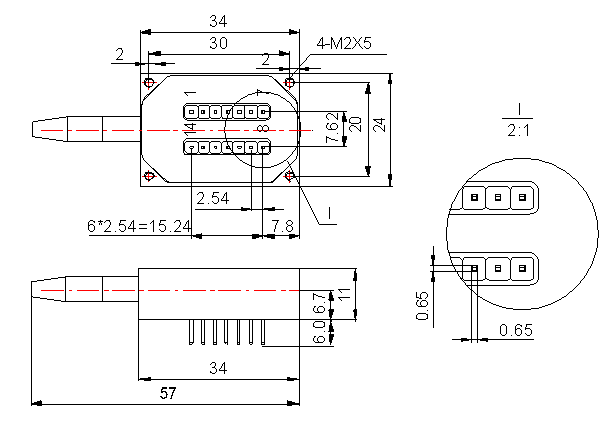

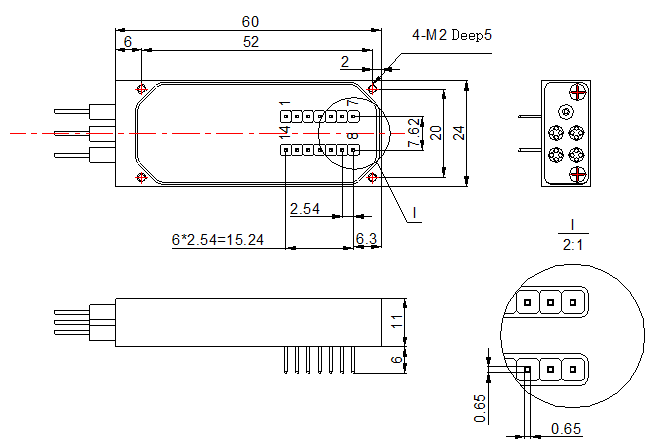

    M1: 34×24×11mm                                                                       M2: 60×24×11mm

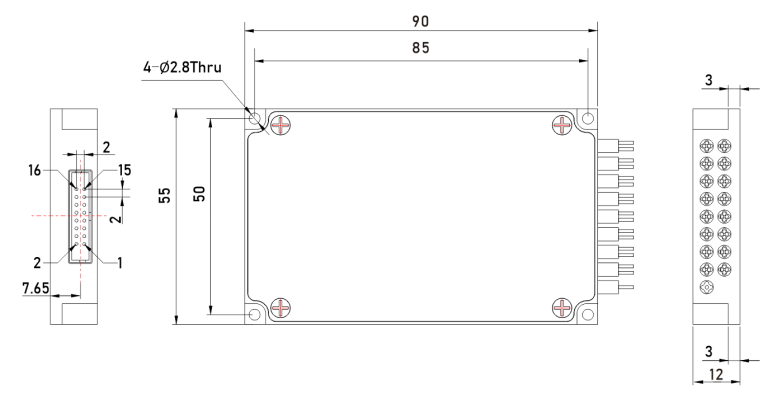

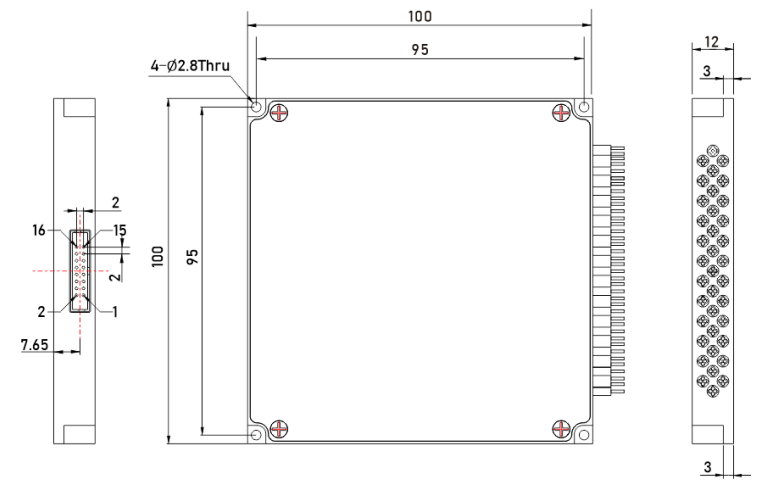

    M3: 90×55×12mm                                                                   M4: 100×100×12mm

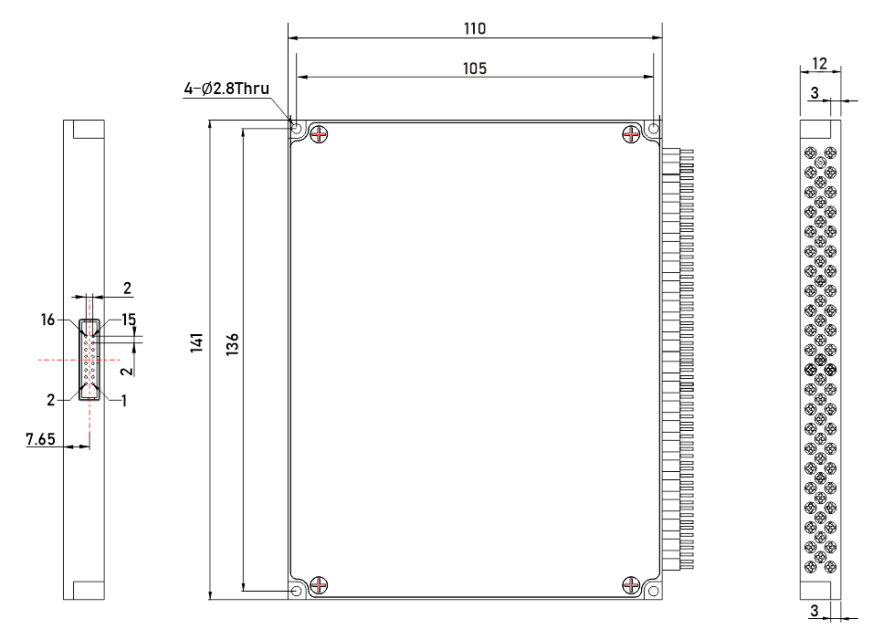

    M5: 110×141×12mm

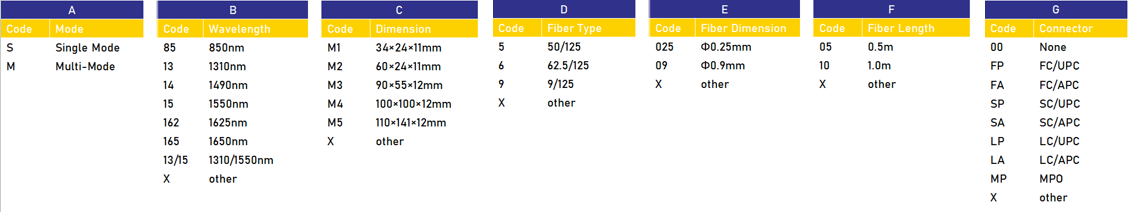

  • Ordering Information: MEMS 1×N-A-B-C-D-E-F-G


  • Optical Network
    Data Center
    Instrumentation
    Fiber Sensing and Monitoring
    • 上一条: MEMS 1×N (Component) 下一条: 没有了
