Mini 1x2

特征
Mini Size
Fast Switching Time
Low Insertion Loss
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
即刻联系
  • 描述

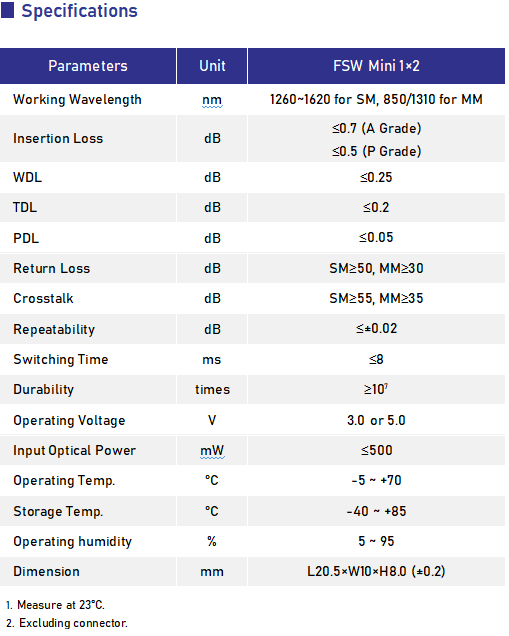

  • 规格
  • 尺寸
  • 订购信息
  • 应用
  •

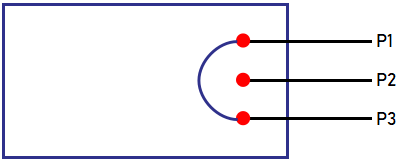

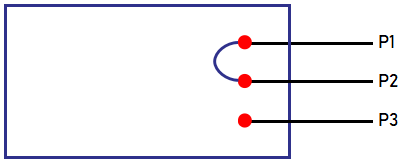

    State A                                                                                                State B

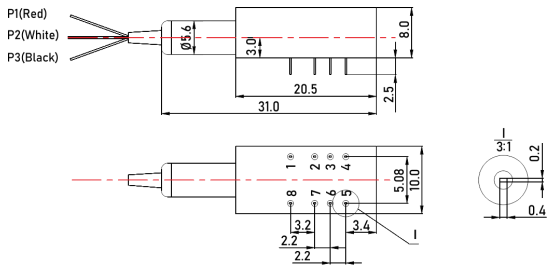

  • Mini 1×2 Mechanical Optical Switch (L20.5×W10×H8.0mm)

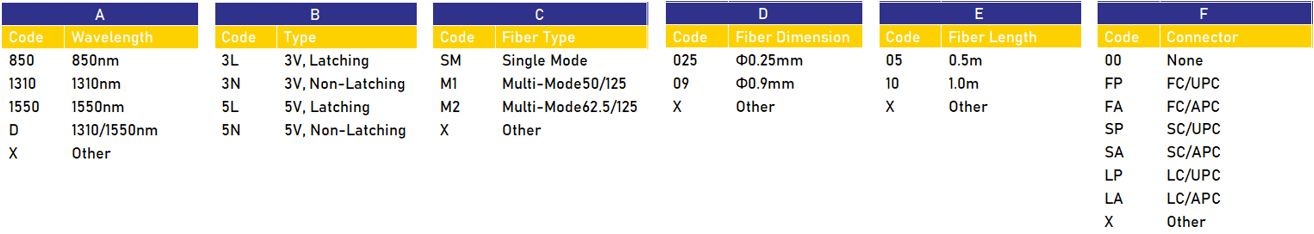

  • Ordering Information: FSW Mini 1×2-A-B-C-D-E-F

  • Optical Network

    Protection Switching

    Reconfiguration

    Optical Systems

    • 上一条: D2x2B 下一条: Mini 1x3/1x4
