首页 > PRODUCTS > Optical Switch > Magneto Optical Switch

1x2

特征
Solid-State High Speed
Compact Size
Low IL,High Isolation
High Reliability and Stability
遵循标准
Telcordia GR-1221
Telcordia GR-1073
即刻联系
  • 描述

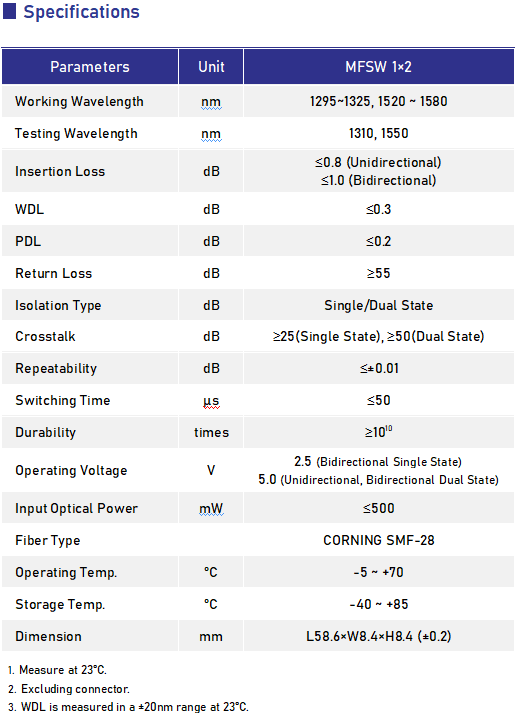

  • 规格
  • 尺寸
  • 订购信息
  • 应用
  •

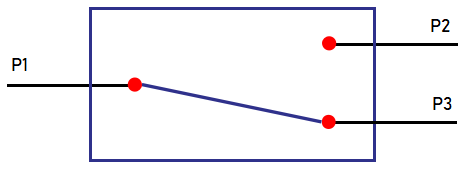

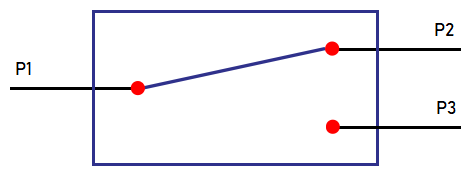

    State A                                                                                                   State B

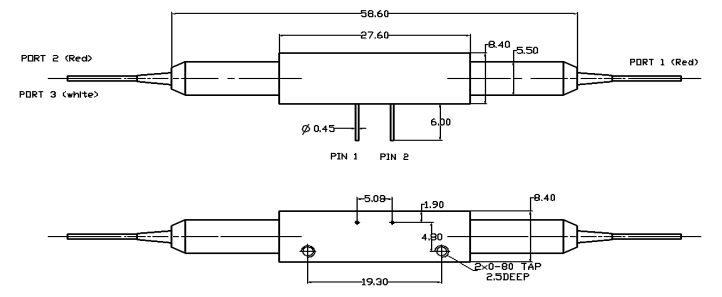

  • 1×2 Magneto Optical Switch (L58.6×W8.4×H8.4mm)

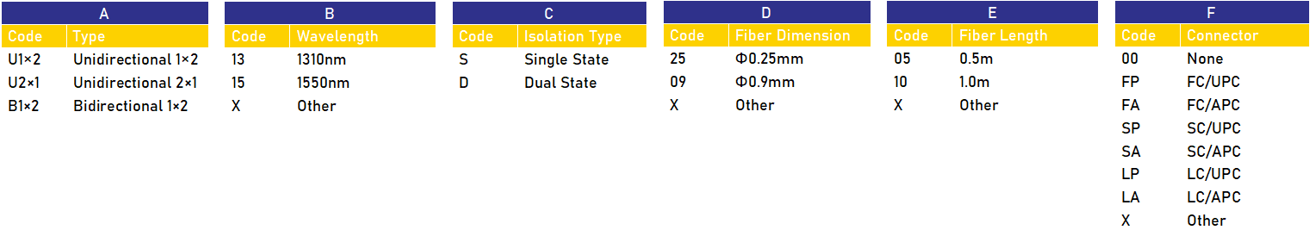

  • Ordering Information: MFSW A-B-C-D-E-F

  • Channel Blocking

    Protection Switching

    Network Monitoring

    Aerospace Radar

    • 上一条: 没有了 下一条: 1x4
