首页 > PRODUCTS > Fiber Optic Cables > AOC Cables

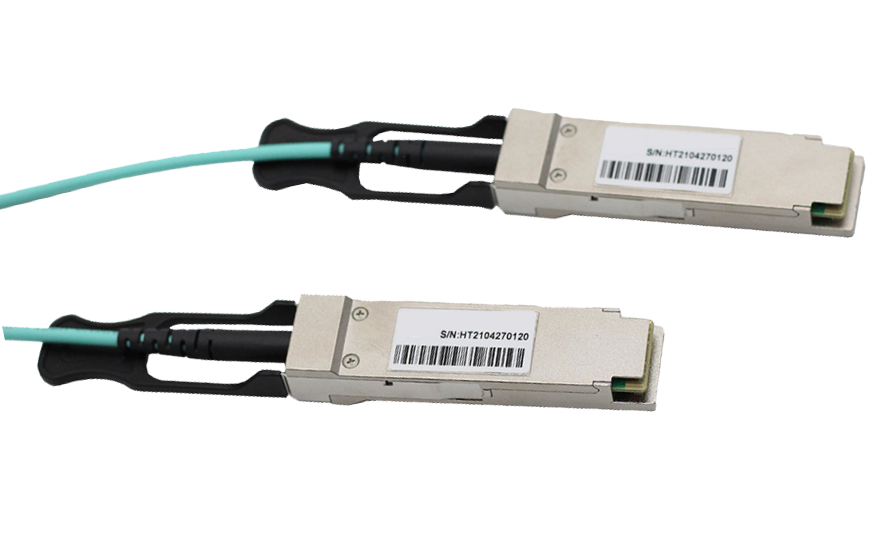

40G QSFP+ AOC

特征
Support 40GBASE-SR4/QDR application
Compliant to QSFP+ Electrical MSA SFF-8436
Transmission distance up to 300m
Low power consumption
遵循标准
RoHS compliant
UL certification cables (optional)
即刻联系
  • 描述
  • 规格
  • 尺寸
  • 订购信息
  • 应用
  • 40G QSFP+ AOC

  • Specification parameter


    Parameter

    Symbol

    Min.

    Typ.

    Max

    Unit

    Notes

    ModSell

    Module Select

    VOL

    0

    -

    0.8

    V


    Module Unselect

    VOH

    2.5

    -

    VCC

    V


    LPMode

    Low Power Mode

    VIL

    0

    -

    0.8

    V


    Normal Operation

    VIH

    2.5

    -

    VCC+0.3

    V


    ResetL

    Reset

    VIL

    0

    -

    0.8

    V


    Normal Operation

    VIH

    2.5

    -

    VCC+0.3

    V


    ModPreL

    Normal Operation

    VOL

    0

    -

    0.4

    V


    IntL

    Interrupt

    VOL

    0

    -

    0.4

    V


    Normal Operation

    VOH

    2.4

    -

    VCC

    V


    Electeical transmitter Characteristice

    Differential Date Input Swing

    Vout

    200

    -

    1600

    mV


    Output Differential Impedance

    ZD

    90

    100

    110

    Ω


    Electeical Receiver Characteristice

    Differential Date Input Swing

    Vin，p-p

    350

    -

    800

    mVpp


    Bit Error Rate

    BER



    E-12


    1

    Input Differential Impedance

    ZIN

    90

    100

    110

    Ω

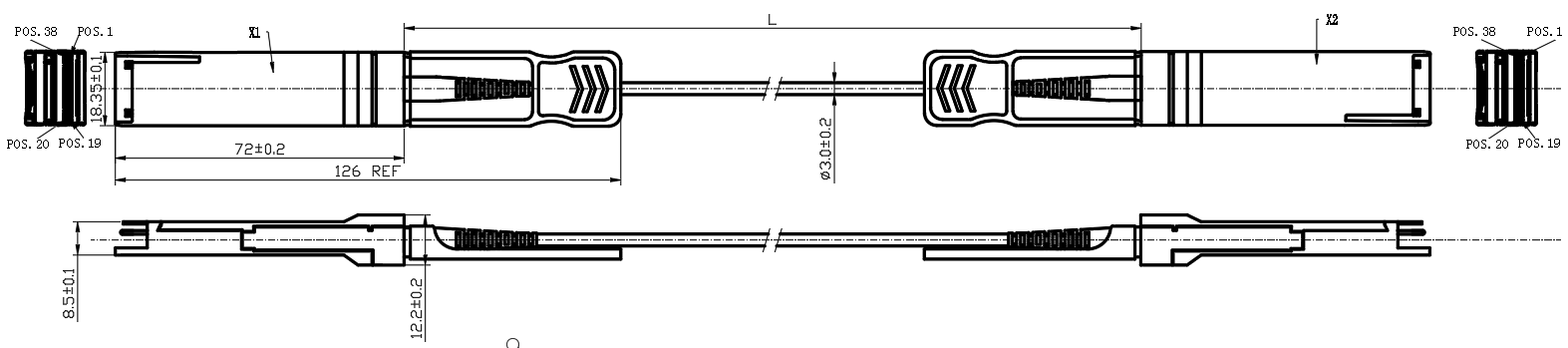

  •                                                                                Mechanical Diagram

  • Othe series AOC active cable:


    40G Active optical cable

    100G Active optical cable

    40G QSFP+ AOC

    100G QSFP28 AOC

    40G QSFP+ TO 4*10G SFP+ AOC

    100G QSFP28 TO 4*25G SFP28 AOC


  • 40GBASE-SR4 at 10.3125Gbps per lane
    InfiniBand QDR
    Other optical links
    • 上一条: 没有了 下一条: 100G QSFP28 TO 4*25G SFP28 AOC
